Mô tả sản phẩm

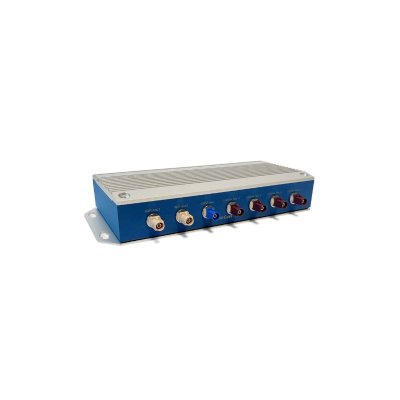

Acksys AirCast-M12, Gateway truyền thông 5G dành cho phương tiện giao thông đường bộ và tàu điện (tram), tuân thủ tiêu chuẩn ITxPT (Information Technology for Public Transport).

Ethernet Interface

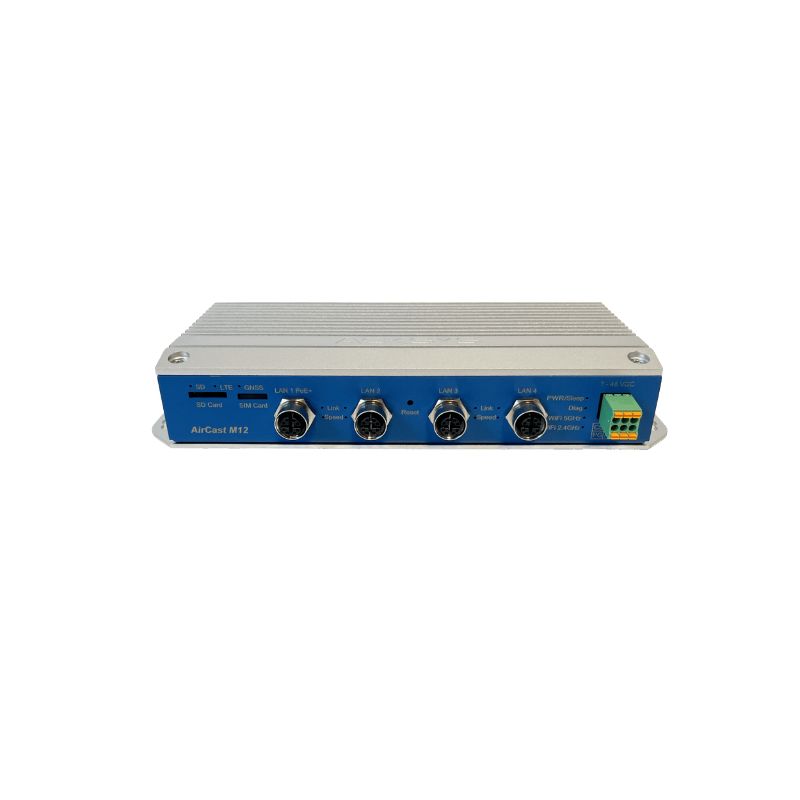

4 ports Gigabit Ethernet Base TX auto-sensing, auto MDI/MDIX cross-over (10/100/1000)
M12 coded X 8 points

Radio connectors

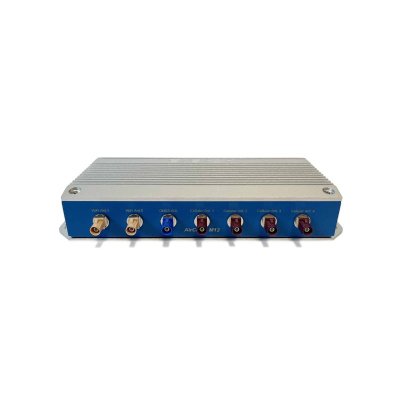

7 fakra connectors : WiFi 6 (2 x I-coded), 5G (4 x D-coded), GNSS (1 x C-coded) according to ITxPT standard

Cellular Interfaces + Navigation

5G SA and NSA with 4 streams + 1 active GNSS, WW coverage (4G/3G compatible)
Dual SIM
Multi-constellation GNSS (GPS, Galileo, GLONASS, Beidou). Requires an active antenna.

Cellular radio data rate

TBC
5G SA Sub-6 : DL 2.4 Gbps; UL 900 Mbps
5G NSA Sub-6 : DL 3.2 Gbps; UL 550 Mbps
LTE : DL 1.6 Gbps; UL 200 Mbps
DC-HSDPA : DL 42 Mbps
HSUPA : UL 5.76 Mbps
WCDMA : DL 384 kbps; UL 384 kbps

Cellular operating frequencies

TBC
5G NR SA : n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
DL 4x 4 MIMO : n1/n2/n3/n7/n25/n30/n38/n40/n41/n48/n66/n70/n77/n78/n79
UL 2x 2 MIMO : n38/n41/n48/n77/n78/n79
5G NR NSA : n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79
DL 4x 4 MIMO : n1/n2/n3/n7/n25/n30/n38/n40/n41/n48/n66/n70/n77/n78/n79

WiFi Interface

2 concurrent radios, 2.4GHz and 5Ghz
WiFi 6 MiMo 2×2 (IEEE 802.11 ax), ANI (Adaptive Noise Immunity)

WiFi radio data rate

Up to 1201Mbps @ 5GHz, and up to 573.5 Mbps @ 2.4GHz

WiFi operating frequencies

ISM : 2.4-2.483 GHz (up to 14 channels)
UNII : 5.15-5.25 GHz (up to 4 channels)
UNII-2 : 5.25-5.35 GHz (up to 4 channels)
UNII-2 ext : 5.470-5.725 GHz (up to 11 channels)
UNII-3 : 5.725-5.825 GHz (up to 4 channels)
Supports DFS and TPC

Max. output power

WiFi : 2.4 GHz: up to 22 dBm (aggregate) / 5 GHz : up to 21 dBm (aggregate)
5G : up to xxx dBm

Sensitivity max.

WiFi : 2.4 GHz : -86 dBm / 5 GHz : -91 dBm
5G : xxx dBm

Security

EN18031 certified with firewall, DoS, https, MAC filtering, WPA/WPA2/WPA3-Personal & Enterprise (IEEE 802.1X/RADIUS), tunnels L2 (GRE), VPN (OpenVPN, IPsec), SNMP V3, Rogue AP detector, Secure BOOT

WiFi Modes

Client, router, Access point, Rogue AP detector

Ethernet networking

IPv4/IPv6 compliance, frames filtering, bridging, repeater, STP/RSTP, VLAN, DHCP (server & client), DNS relay

Ethernet routing

Multicast (PIM), IP redundancy (VRRP), static routes, NAT 1:1, NAT router, router

Administration

http, https, MQTT, SNMP agent (V1, V2C, V3), CLI
Micro-SD card : save/ restore configuration and logs storage
WaveManager On premise or Cloud administration tool

LEDs signaling

Power supply

9 to 36 VDC isolated or PoE+ 802.3at
ITxPT: delayed shutdown and full power/low battery management
6-point Phoenix connector

Consumption

TBC : Typical power consumption 25W / Recommended power supply 30W

Dimensions & weight

Product: compact rugged aluminum enclosure, TBC: 180 x 40 x 100 mm, 600 g

Standards and certifications

ITxPT compliant
CE (RED)	Cybersecurity : EN 18031 Safety : EN 62368-1, EN62311 EMC : EN 301-489-1, EN 301-489-17 Radio: • WiFi : EN 300 328 (2.4 GHz), EN 301 893 (5 GHz, DFS) • 5G : EN 301 908 (-1, -2,-13), EN 301 511, EN 303 413
FCC	Radio: • WiFi : FCC ID xxx • 5G : FCC ID xxx
Automotive	EMC : ECE R10 (UTAC E2/ R10) Environment : • Shock and vibration : EN 61373 • Fire/smoke : UNR118, RoHS, WEEE
Railway	CEM : EN 50155 Environment: • Shock and vibration : EN 61373 • Fire/smoke : EN45545

Environment

IP40 seal rating • Operating: -40°C to +70°C (HR 0-99%)

Warranty

5 years

Xem thêm

Thông số kỹ thuật

Thông số	Acksys AirCast-M12
Công nghệ di động	5G Router tích hợp GNSS
WiFi	WiFi 6 (802.11ax) hỗ trợ roaming nhanh
Cổng mạng	4 x Gigabit Ethernet chuẩn M12
Định tuyến thông minh	Smart Traffic routing theo ứng dụng (WiFi / 5G)
Chuẩn ITxPT	Phiên bản Linden – M12 & Fakra connectors
Quản lý nguồn	Delayed shutdown, quản lý nguồn & pin yếu
Dịch vụ tích hợp	DNS-SD, GNSS Location, Time, MQTT
An ninh mạng	EN 18031: Secure Boot, VPN, Firewall tích hợp
Chứng nhận	ECE R10, EN 50155, EN 45545-2
Lưu trữ	Khe Micro SD (cấu hình & log)
Quản lý tập trung	WaveManager (remote monitoring)
Ứng dụng	Bus, tram, ITS, hệ thống giao thông thông minh
