Mô tả sản phẩm

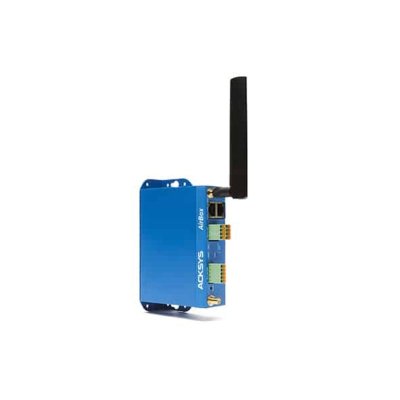

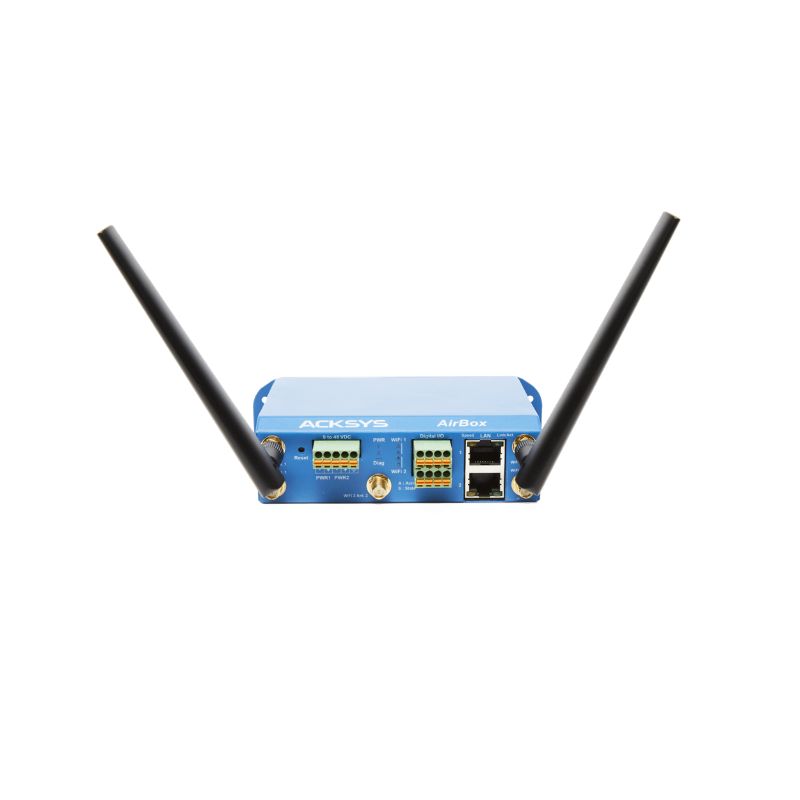

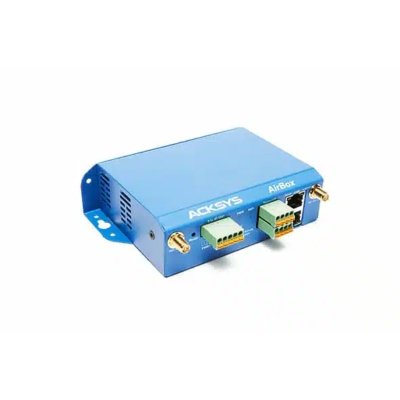

ACKSYS AirBox LTE 2 là router công nghiệp tích hợp 4G LTE và WiFi, thiết kế chuyên dụng cho giao thông thông minh (ITS), phương tiện vận tải và môi trường công nghiệp yêu cầu độ bền cao và tính sẵn sàng liên tục.

Ethernet interface

2-port Gigabit Ethernet 10/100/1000 auto-sensing, Base TX, auto MDI/MDIX, RJ45 Ethernet interface

Cellular interfaces + navigation

1 LTE radio category 4, 3GPP E-UTRA release 10, MIMO DL with Rx diversity.
Dual SIM.
LTE, UMTS/HSPA+, GSM/GPRS/EDGE (worldwide). Multi-constellation GNSS (GPS, Galileo, GLONASS, Beidou). Requires an active antenna.

Cellular radio data rate

150 Mbps ↓ & 50 Mbps ↑ (maximum radio data rate)

Cellular operating frequencies

FDD LTE: B1/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
TDD LTE: B38/B39/B40/B41
WCDMA: B1/B2/B4/B5/B6/B8/B19
GSM: B2/B3/B5/B8

WiFi interface

802.11n (MIMO 2T2R), 300 Mbps, 2.4 / 5 GHz, ANI (Adaptive Noise Immunity)

WiFi radio data rate

802.11a: 6, 9, 12, 18, 24, 36, 48 & 54 Mbps
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 & 54 Mbps
802.11n: MCS0-7, 2 streams (6.5 to 300 Mbps)

WiFi operating frequencies

ISM : 2.4-2.483 GHz (up to 14 channels)
UNII : 5.15-5.25 GHz (up to 4 channels)
UNII-2 : 5.25-5.35 GHz (up to 4 channels)
UNII-2 ext : 5.470-5.725 GHz (up to 11 channels)
UNII-3 : 5.725-5.825 GHz (up to 4 channels)
Supports DFS and TPC

Output power

WiFi : • 2.4 GHz : up to 23.5 dBm (aggregate) • 5 GHz : up to 21 dBm (aggregate)
LTE : • GSM : up to 33 dBm

Sensitivity max.

WiFi : • 2.4 GHz : -94 dBm • 5 GHz : -96 dBm
LTE WCDMA B5/B8 receiver : -110.5 dBm

Radio connectors

• WiFi : 2 x RP-SMA • LTE : 2 x SMA (female) • GNSS : 1 x SMA (female)

Security

Firewall, DoS, https, MAC filtering, WPA/WPA2-Personal & Enterprise (IEEE 802.1X/RADIUS), WEP, tunnels L2 (GRE), VPN (OpenVPN), SNMP V3, client isolation in AP mode

WiFi modes

AP, client, MESH (IEEE 802.11s), infrastructure, fast roaming (less than 30 ms), WMM QoS

Ethernet networking

Frames filtering, bridging, repeater, STP/RSTP, VLAN, DHCP (server & client), DNS relay

Ethernet routing

Multicast (PIM), IP redundancy (VRRP), static routes, NAT router, router

Administration

http, https, SNMP agent (V1, V2C, V3), WaveManager administration software

I/O

– 2 solid state relay output warnings (with configurable action), 1 Form A, 60VDC 80mA max
– 2 inputs for external device control 24VDC max

LEDs Signaling

Radios : activity – status | Ethernet : 10/100/1000 link – activity | GPS : status | Power : on-off (x2)

Power supply

+9VDC to +48VDC (redundant, 5-pin Phoenix connector) or PoE 802.3af powered device (from model V2)

Consumption

9.6 W typical – 12 W maximum

Dimensions & weight

Compact case L : 141.2 x l : 99 x h : 35 mm, weight without accessories : 347g

Standards and certifications

CE (RED)	Cybersecurity: EN 18031 Safety : EN 62368-1:2014+A11, EN62311 EMC : • WiFi : EN301-489-1, EN301-489-17 • LTE : EN 301 489 [-19], [-52] Radio : • WiFi : EN 300 328 2.1.1 (2.4 GHz), EN 301 893 2.1.1 (5 GHz, DFS) • LTE : EN 301 908 [-1, -2, -13], EN 301 511, EN 303 413
FCC	Radio : • WiFi : FCC ID Z9W-RMB • LTE : FCC ID XMR201708EC25E
E-marking	ECE R10
Environmental	Shocks & vibrations : EN 61373 (CAT 1 CLASS B)

Environment

IP30
Operating temperature: -20°C to +60°C , storage: -40°C to +85°C, humidity: 0% to 99% (non-condensing)

Warranty

5 years

Xem thêm

Thông số kỹ thuật

Thông số	Acksys AirBox LTE
Chuẩn di động	2G / 3G / 4G LTE (Auto-fallback)
Ứng dụng ITS	Hỗ trợ LTE Band 38
Chứng nhận	E-mark E2 (ECE R10)
WiFi	IEEE 802.11n, MIMO 2T2R, 2.4GHz / 5GHz
Chế độ WiFi	AP / Client / Repeater
Roaming	< 30 ms
Chuyển mạch WAN	Tự động Cellular ↔ WiFi
Cổng Ethernet	2 x 10/100/1000Base-T
Bảo mật	VPN, Firewall, RADIUS
Nguồn cấp	+9 ~ +48 VDC (Redundant) + PoE 802.3af (V2)
I/O công nghiệp	2 Input cách ly + 2 Output cách ly
Tiêu chuẩn cơ khí	Chống rung lắc EN61373
Lắp đặt	Treo tường hoặc DIN Rail
Ứng dụng tiêu biểu	Xe buýt, tàu điện, ITS, hệ thống công nghiệp
