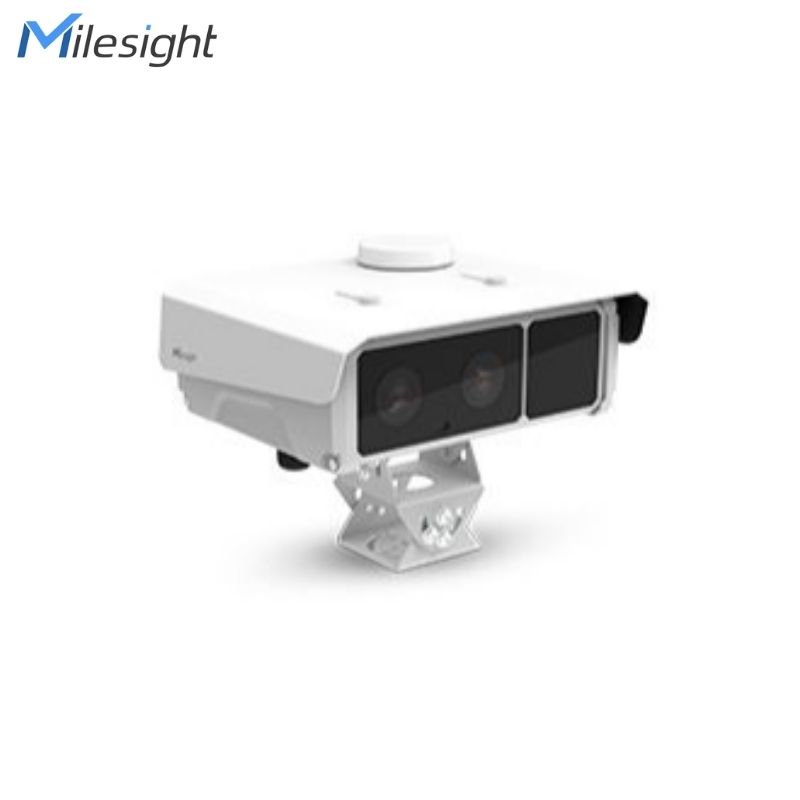

Mô tả sản phẩm

Chip AI hiệu suất cao và ISP AI nhúng
ANPR tích hợp dựa trên AI
Tốc độ dễ nhận biết 250km/h
Tỷ lệ chụp 99% và tỷ lệ nhận dạng biển số 98%
2 ống kính lấy nét tự động 5MP
Ống kính kép cho hình ảnh tổng quan và ANPR
Khoảng cách ANPR 50m & 2-3 làn xe bao phủ
Hỗ trợ thẻ SD 1TB để lưu trữ Edge
Mạng 4G LTE cho truyền dẫn không dây (Tùy chọn)
GPS tích hợp để xác định vị trí chính xác

Thông số kỹ thuật chi tiết:

Camera
Image Sensor	Color, 2/3" Global Shutter
Min. Illumination	Color: 0.001 Lux@(F1.4, AGC ON)
Shutter Time	30 us- 40000 us
Day/Night Mode	Day/Night/Auto
Supplement Light	IR: IR Strobe Light (9 light beads @ 850nm, 16 light beads @ 740nm) IR Distance: 60m IR Wave Length: 850nm (Default), 740nm (Optional)
Road Traffic Management
Max. ANPR Range	Up to 50m
Max. Vehicle Speed	250 km/h
Coverage	Recommended for 2~3 lanes
Capture Rate	Up to 99%
Recognition Accuracy	Up to 98%
Country Region Supported	More than 74 countries and regions
Attributes Identification	Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture
Violation Management	Reverse Driving, Vehicle Attributes Event Detection
White/Black List	Up to 20,000 records inside the camera
LPR Smart Search	Support
Interface
Ethernet	1*RJ45 10M/100M/1000M Ethernet Port
RS485	Support
Input	4 * Optoisolated Input
Output	2 * Strobe Output 1 * Relay Output
Lens
Lens	15-50mm, Motorized zoom and focus
Mount	Custom mount
Field of View	horizontal FOV 41.4° to 10.3°, vertical FOV 26.8° to 8.42°, diagonal FOV 32° to 13.3°
Video
Max. Resolution	2464x2056
Max. FPS	30fps
Video Compression	H.265/H.264/MJPEG
Video Bit Rate	16Kbps~16Mbps (CBR/VBR Adjustable)
Image Setting	Brightness/Contrast/Saturation
Privacy Masking	Up to 24 Areas (per Sensor)
Wireless Network (Optional)
Cellular	4G LTE NA: B2/B4/B5/B12/B13/B25/B26 EU: B1/B3/B7/B8/B20/B28 AU: B1/B2/B3/B4/B5/B7/B8/B28/B66
SIM Card	Nano SIM
System
System Compatibility	API, HTTP, TCP, MQTT, ONVIF Profile G & S & T
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
General
GPS	Built-in High-accuracy GPS Module
Working Temperature	-40°C ~ 70°C
Working Humidity	0~95% (Non-condensing)
Power Consumption	22W MAX 26W MAX (With IR on)
Weather Proof	Up to IP67-rated for Weather-resistant Performance
Power Supply	24 V DC/AC
Weight	4.3Kg
Dimensions	121mmx295mmx245mm (Without Mounting Bracket)
Warranty	3 Years
Certifications
EMC	CE-EMC (EN 55032, EN 55035), FCC (PART 15B)
Safety	CE-LVD (EN IEC 62368-1)
Environment	CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)
